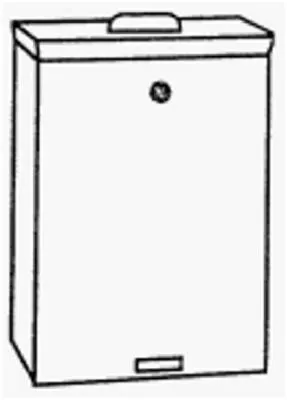

Factory installed main lug, convertible to a main breaker. Single-phase, three-wire, 120/240 volt AC. One-piece interior removes and reinstalls easily. Full-length neutrals are easier to wire, reducing installation time and cost. Minimum 100 per cent neutral terminations. Sturdy copper bus and galvanized box increase durability and reliability. Combination slotted/Robertson screws speed wiring. All holes are rated for 14-4 wire. 100 per cent rated split neutral on each side. Load centers accept Q Line circuit breakers, including GE's exclusive 1/2" THQPs. 100-225 amp devices have removable closing cap. (12) 1" or (24) 1/2" spaces; 22000 AIC. 12-1/2" x 21-3/16" x 4-5/8".
- Factory installed main lug, convertible to a main breaker
- Single phase, 3-wire, 120/240 VAC
- One-piece interior removes and reinstalls easily
- Full length neutrals are easier to wire, reducing installation time and cost
- Minimum 100% neutral terminations
- Sturdy copper bus and galvanized box increase durability and reliability
- Combination slotted/Robertson screws speed wiring
- All holes are rated for 14 - 4 AWG wire
- 100% rated split neutral on each side
- Load centers accept Q Line circuit breakers, including GEs exclusive 1/2 in THQPs.
Specifications:
- Series: TLM
- Type: Standard, Convertible
- Voltage Rating: 120/240 VAC
- Amperage Rating: 125 A
- Number of Phases: 1
- Wiring Configuration: 3-Wire
- Interrupt Rating: 65 kA
- Circuit Breaker Type: Main Lug
- Breaker Mounting: Plug-In
- Finish: Galvanized
- Number of Circuits: 24
- Cable Size: 14 - 4 AWG
- Feed Type: Top/Bottom
- Buss Bar Material: Copper
- Box Style: R3
- Enclosure Type: Type 3R Outdoor/Rainproof
- Overall Depth: 4-5/8"
- Standards: UL Listed
- Usage: Used as Service Entrance Equipment
